SX-SAB – Batch

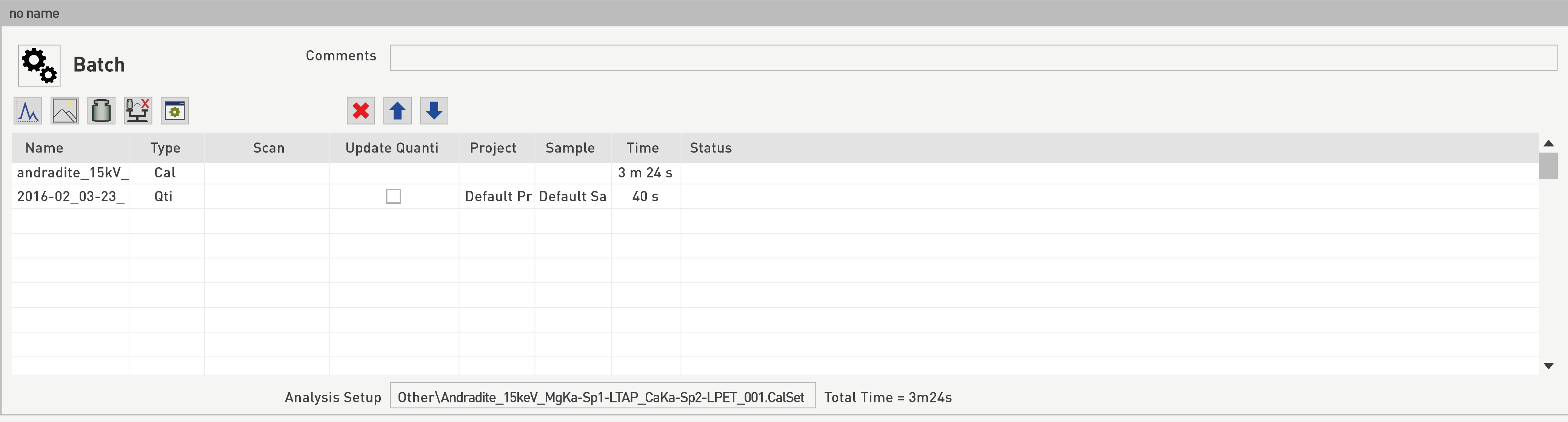

As opposed to the individual WDS, Images and Profiles, Calibrate and Quantify menus that would only accept files of the same kinds, the Batch panel allows any kind of panels to be bundled with others. Therefore, analysts could for instance decide to run all the four kinds of analysis, as long as the files contain the DAT extension obtained when preparing the Analysis files, as shown below.
As for the Analysis files, information on the corresponding Project, Sample and Acquisition Time is indicated in the Batch panel. The Update Quanti checkbox allows users to keep updating calibration files used in Quantification or Images & Profiles settings.
The so-called SX-SAB module for Setting, Acquisition, Batch provides the user the ability to set, acquire and launch automatically WDS spectra, images and profiles, calibrations and quantifications.
